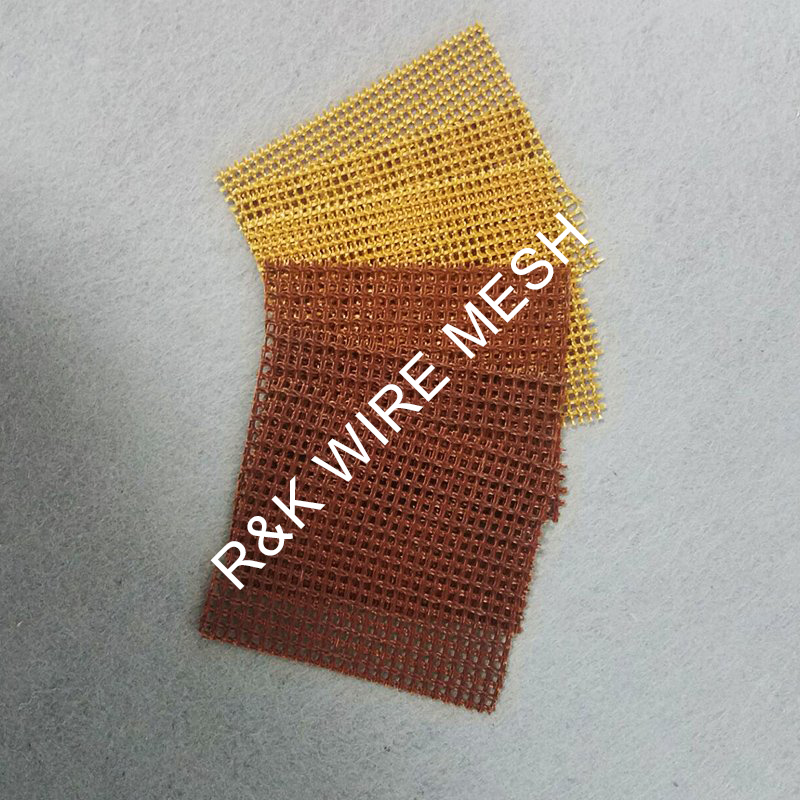

Fiberglass Filter Mesh For Metal Cast

Views: 19     Author: Site Editor     Publish Time: 2021-03-14      Origin: Site

Inquire

Fiberglass Filter Mesh For Metal Cast Color: white and gold.

Fiberglass Filter Mesh For Metal Cast Material: Fiberglass.

Fiberglass Filter Mesh For Metal Cast Heat resistance: 800 °C.

Fiberglass Filter Mesh For Metal Cast Hole size: 0.5x0.5mm, 0.6x0.6mm, 0.8x0.8mm,1.0x1.0mm,1.2x1.2mm,1.5x1.5mm, 2.0x2.0mm, 2.5x2.5mm.

Fiberglass Filter Mesh For Metal Cast Thickness: 0.3-0.8mm.

Fiberglass Filter Mesh For Metal Cast Width:1m or according customer's requirement.

Fiberglass Filter Mesh For Metal Cast Length: 50m/roll,100m/roll.

We can also produce all kinds of filter netting according to customer's requirement.

Fiberglass Filter Mesh For Metal Cast Advantage

Low cost,accurate and clean addition,not capable to change metal element,

good efficiency of filtering slags,low gas evolution.

Heat-resistant,ablation-resistant,stable chemical stability,abrasion-resistant and superior strength.

There are four types of Fiberglass Filter Mesh for Metal
1.The temperature for filtering iron water is 1450 degree
2.The temperature for filtering steel water is 1600 degree
3.The temperature for filtering copper alloy water is 1200 degree
4.The temperature for filtering aluminum alloy water is 850 degree

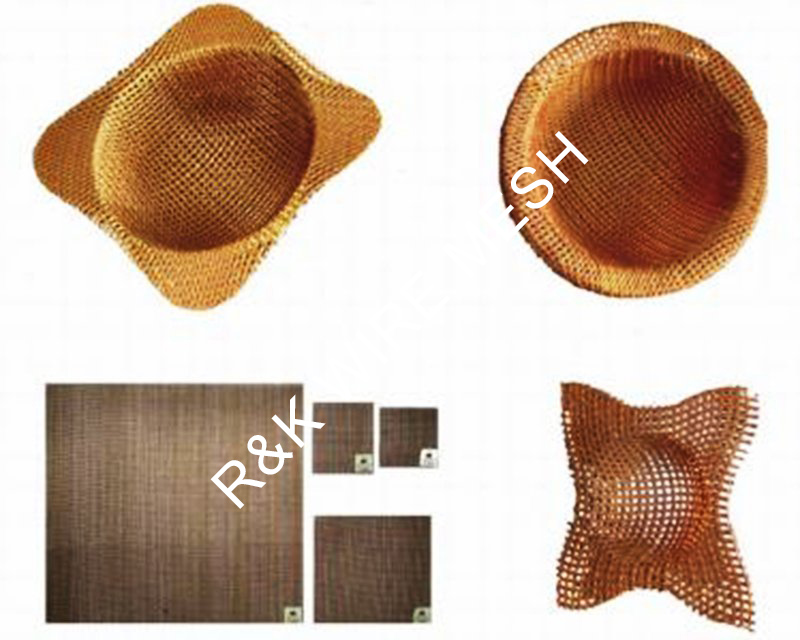

Fiberglass part of hat shape for filtering
Soft fiberglass mesh bag for filtering

Fiberglass Filter Mesh For Metal Cast 4  Fiberglass Filter Mesh For Metal Cast 3Fiberglass Filter Mesh For Metal Cast 8  Fiberglass Filter Mesh For Metal Cast 6

Mesh opening Mesh count Thickness Weight Application Temperature
(mm) (Mesh/inch) mm g/m2

0.8X0.8 16X15 0.35±0.04 183±10 Molten steel/ iron/ coope、 brass/Aluminum 1600~1620℃ 5(for steel)
1.0X1.0 14X15 0.37±0.04 171±10
1.2X1.2 12X13

 1400~1450℃ (for Iron)
1.5X1.5 11X9


1.5X1.5 12X11 0.43±0.05 201±15  1200℃ (for Cooper/brass)
2.0X2.0 10X10 0.49±0.05 209±15
2.5X2.5 8*9


700~800℃(for Aluminum)
