Stainless steel reverse dutch weave wire mesh

Views:2     Author:Site Editor     Publish Time: 2018-08-09      Origin:Site Inquire

Like a single plain Dutch weave, the Stainless steel reverse dutch weave wire mesh is a plain weave mesh, but has a reverse line diameter arrangement with fine warp threads positioned close to each other and a thicker weft thread woven within a specified distance. It is also known as Stainless Steel Dutch Twilled Mesh, Stainless steel dutch twill wire mesh.The higher strength produced in the warp direction makes the Stainless Steel Dutch Twilled Mesh very often used as a filter.


The  Stainless steel reverse dutch weave wire mesh is similar to the reverse plain dutch weave, but the warp is woven with 2/2 twill weave. The advantage of this is that it does not distort the warp as in plain weave. The resulting high strength warp direction facilitates applications such as filter belts.

Woven wire fabric - Reverse Dutch woven mesh (reverse Dutch woven wire mesh): Reverse Dutch woven wire mesh made of 304, 304L, 316, 316L, duplex stainless steel, 904L and other stainless steel wire.

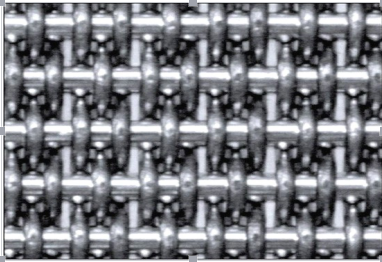

Stainless steel reverse dutch weave wire mesh



Stainless steel reverse dutch weave wire mesh type: reverse plain Dutch weave and reverse twill Dutch weave.



Features of Stainless steel dutch twill wire mesh: Reverse Dutch woven wire mesh features fine filtration and a highly durable and smooth bright surface.



Stainless steel dutch twill wire mesh (Wire Cloth) application: Reverse Dutch Weave Wire Mesh is widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research, transportation and other industries.

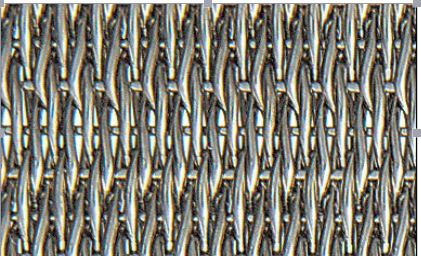

Stainless steel reverse dutch weave wire mesh



 Specifications:


Mesh/Inch

Warp x Weft

Wire Dia. (mm)

Warp x Weft

Density of Warp

Number/dm

Fineness of Filtering

(Micron)

48 X 10

0.5 X 0.5

189

300

290 X 76

0.09 X 0.19

1142

40

400 X 120

0.058 X 0.1

1575

30

625 X 104

0.042X 0.16

2461

28

720x150

0.036x0.10

2830

17

850x155

0.03x0.10

3390

19
