Stainless Steel Twill Filter Mesh

As a supplier of stainless steel wire mesh for many different industries and applications, Resen produces a wide variety of woven wire meshes. Our production program for square mesh ranges in aperture sizes from 0.025 mm to 14 mm. And in addition to our standard program, which is always readily available in stock, we also run lots of special productions for customer-specific applications.
  • ZHAOTONG
  • ISO9001
  • L/C,T/T
Quantity:

As a supplier of stainless steel twill filter mesh/twill weave stainless filter mesh/stainless steel slain filter mesh/stainless steel wire mesh for many different industries and applications, Hebei Reking produces a wide variety of woven stainless steel wire meshes. Our production program for square mesh ranges in aperture sizes from 0.025 mm to 14 mm. And in addition to our standard program, which is always readily available in stock, we also run lots of special productions for customer-specific applications.


Stainless Steel Twill Weave Filter Mesh - Twill Weave is a kind of commonly used weaving method. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal twill weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness.


Hebei Reking Stainless Steel Twill Filter Mesh/Stainless Steel Twill Filter Cloth, high resistance due to tight wire position, extreme low absolute grade of fineness (down to 5-6μm),high filtration performance in case of low viscose medium, it is the finest filtration in hydraulic systems, especially for critical applications as aero-space, fuel-and combustion.


Production Process

plain-filter-process-1 plain-filter-process-2

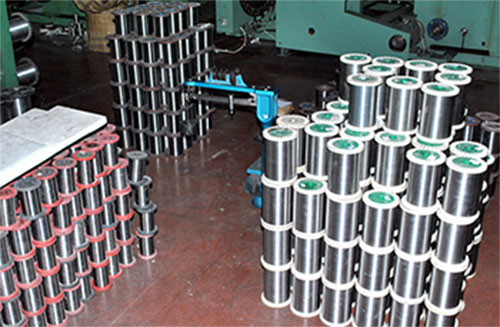

wire material

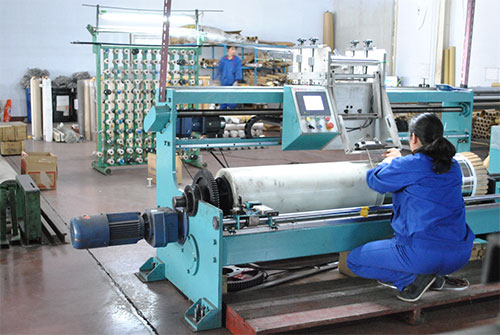

warping

plain-filter-process-3 plain-filter-process-4

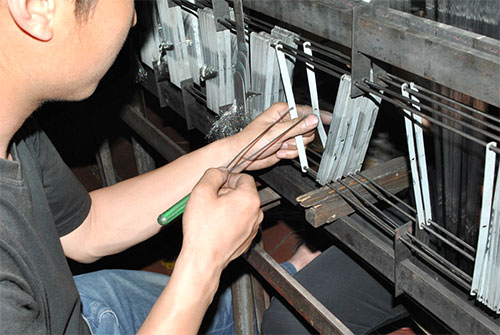

Piercing

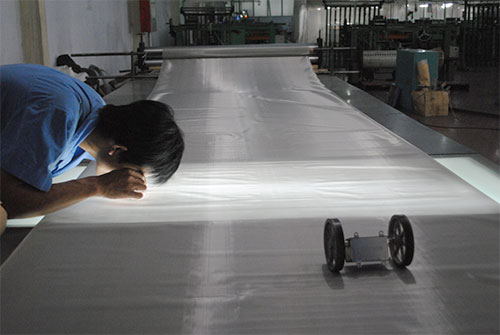

quality control

plain-filter-process-5 plain-filter-process-6

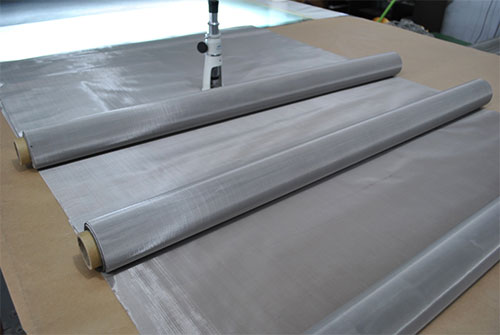

products

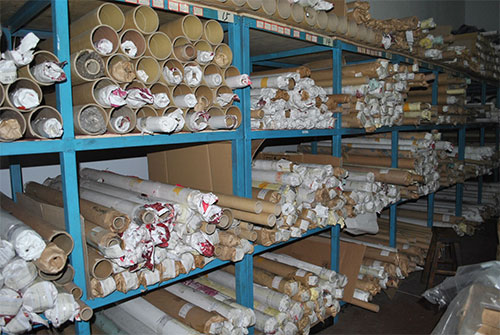

stock mesh

stainless steel plain filter mesh specification:

Mesh count (Warp*Weft)

Dia.(Warp*Weft)

Aperture

Open Area

Weight

MM

MM

(%)

(kg /m2)

30

0.4




40x30

0.18




40

0.28

0.355

31.3

1.57

40

0.35




50

0.25




60x52

0.15




60

0.22




60

0.23




70.6

0.16

0.2

30.9

0.9

80x70

0.12




80

0.15




120x110

0.08




150x140

0.06




157.8

0.071

0.09

31.2

0.4

177.6

0.063

0.08

31.6

0.35

186.8

0.056

0.08

34.6

0.29

200x180

0.05




200x190

0.05




200

0.056

0.071

31.3

0.31

224.8

0.05

0.063

31.1

0.28

230

0.05

0.06

29.9

0.29

235.2

0.045

0.063

34

0.24

250

0.05

0.052

25.8

0.31

251.5

0.045

0.056

30.7

0.25

264.6

0.04

0.056

34

0.21

270x207

0.04

0.054

33

0.22

282.2

0.04

0.05

30.9

0.23

295.3

0.036

0.05

33.8

0.19

313.6

0.036

0.045

30.9

0.2

325

0.035

0.043

30.5

0.2

362.9

0.03

0.04

32.7

0.16

350x305

0.035

0.038

26.8

0.21

370

0.032

0.037

28.5

0.19

384.8

0.03

0.036

29.8

0.17

396.9

0.028

0.036

31.6

0.16

400

0.03

0.034

27.8

0.18

423.3

0.028

0.032

28.4

0.17

425

0.026

0.034

31.9

0.14

445.6

0.025

0.032

31.5

0.14

450

0.025

0.031

31

0.14

479.2

0.025

0.028

27.9

0.15

508

0.022

0.028

31.4

0.12

508

0.025

0.025

25

0.16

540.4

0.022

0.025

28.3

0.13

635

0.02

0.02

25

0.13



Package:

Waterproof kraft paper inside , wooden box outside.

plain-filter-pake-2


FAQ:

1.MOQ: There is no minimum order quantity for sample orders, and we can negotiate it from the second time.

2.Packaging:We accept your private packaging with low cost.

3.Quality:Each product pass 5 times inspections at least before finishing to guarantee high quality.

Our factory

Hebei Zhaotong Wire Mesh Manufacturing Co., Ltd. was founded in 1997. After about 23 years of development,we provide services for our clients come from more than 60 countries and regions,main product,stainless steel wire mesh,polyester printing mesh ,nylon mesh,polyester belt and wire mesh processed products.

We have 3 production factories,more than 500 employees,more than 600sets of production and testing equipment.The main production equipments: Sulzer Gripper Weaving Looms from Switzerland,JAGER BK600 weaving looms from German,JUNGENS JP-2000 weaving looms from Germany,TEXO FORMSTAR looms from Sweden,Germany Babcock heat setting machines,WIS SC-3 Automatic insertion machines from Austrian,Japan RGK-1300 metal wire mesh Automatic weaving machine,Kyoto RD Automatic Calender machine,the world’s most advanced screen productive equipments and some domestic equipments,support association in the production capacity and the level of technology equipment.

While receiving your order, we hope to provide you more technical support and system solutions plan.
