Stainless Steel Dutch Twilled Mesh

Views:3     Author:Site Editor     Publish Time: 2018-08-09      Origin:Site Inquire

Stainless Steel Dutch Twilled Mesh is a particularly sturdy mesh associated with its fineness, making it ideal for heavy duty filtration tasks.

Stainless Steel Dutch Twilled Mesh is always known as  plain dutch weave stainless steel filter mesh screen,micron stainless steel dutch weave wire mesh.These properties are achieved by the high material density of such a matte metal fabric. Density is provided by twill weave (2/2) with a small amount of thick warp and significantly more weft. Due to the complex manufacturing process, this grid production takes longer than other grids, and RK retains pre-assembled twill Dutch weave for its customers.

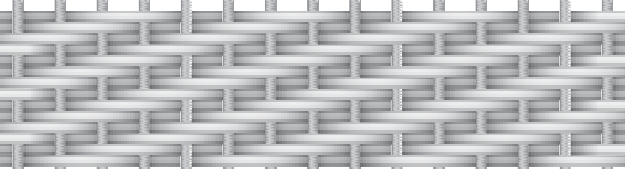

 Stainless Steel Dutch Twilled Mesh

Micron stainless steel dutch weave wire mesh provides higher strength than ordinary Dutch weaving.

It contains more wires in a given area. Generally, this weave has a finer mesh number and lower fluidity than conventional Dutch weaving, and can be made

into fine particles having a diameter of 2 μm.

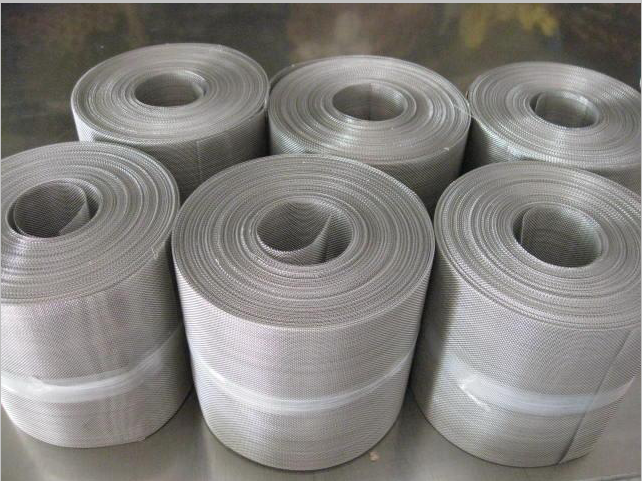

micron stainless steel dutch weave wire mesh


Filter application:

*Nutsche filter

*Pre-coated filtration system

*Sand control screen

*Cartridge filter

*Aperture ≥ 4μm

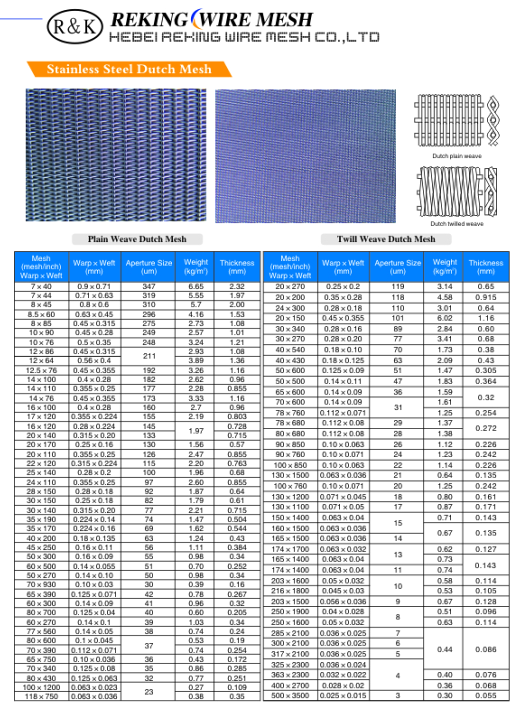

 Stainless Steel Five Heddle Mesh
